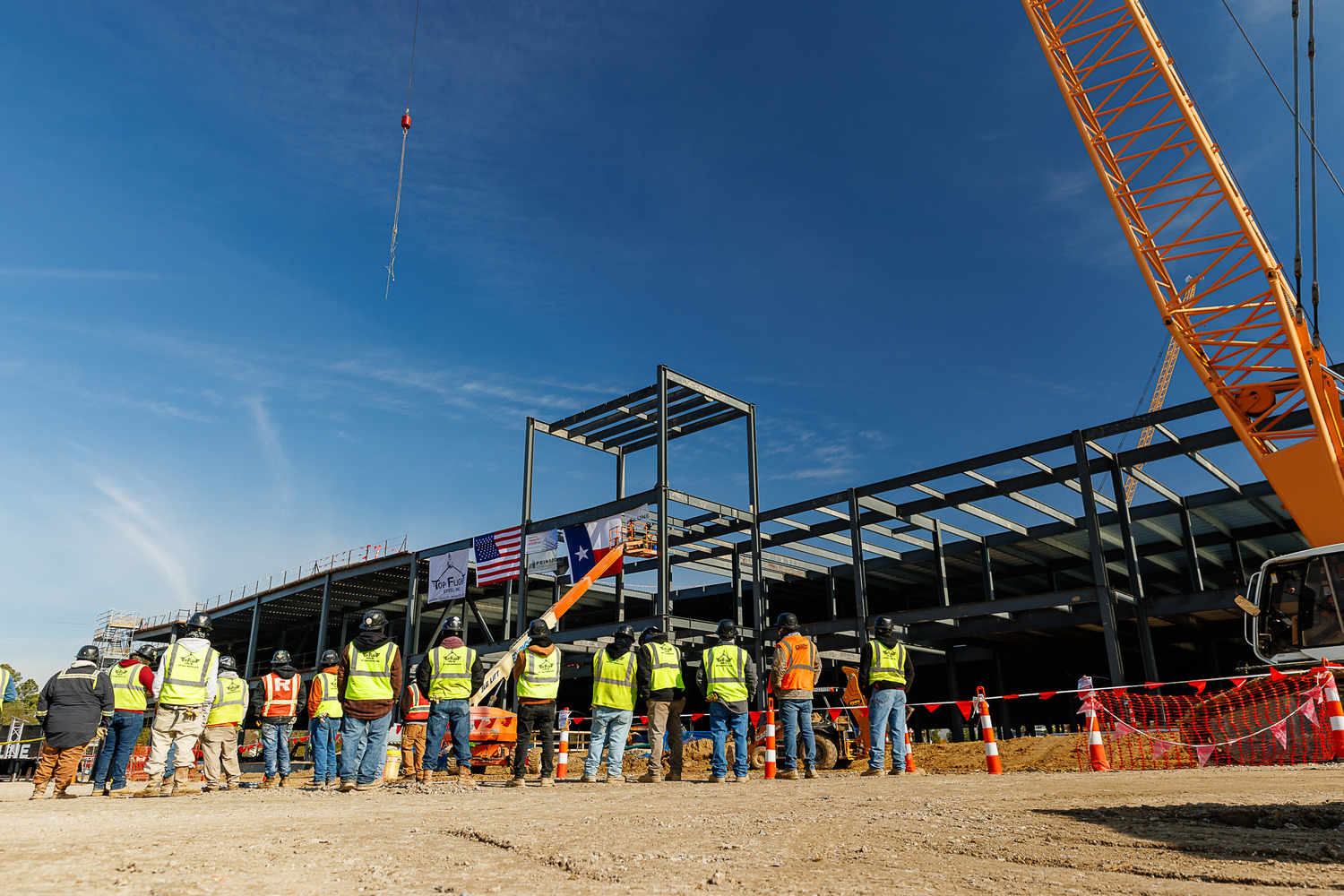

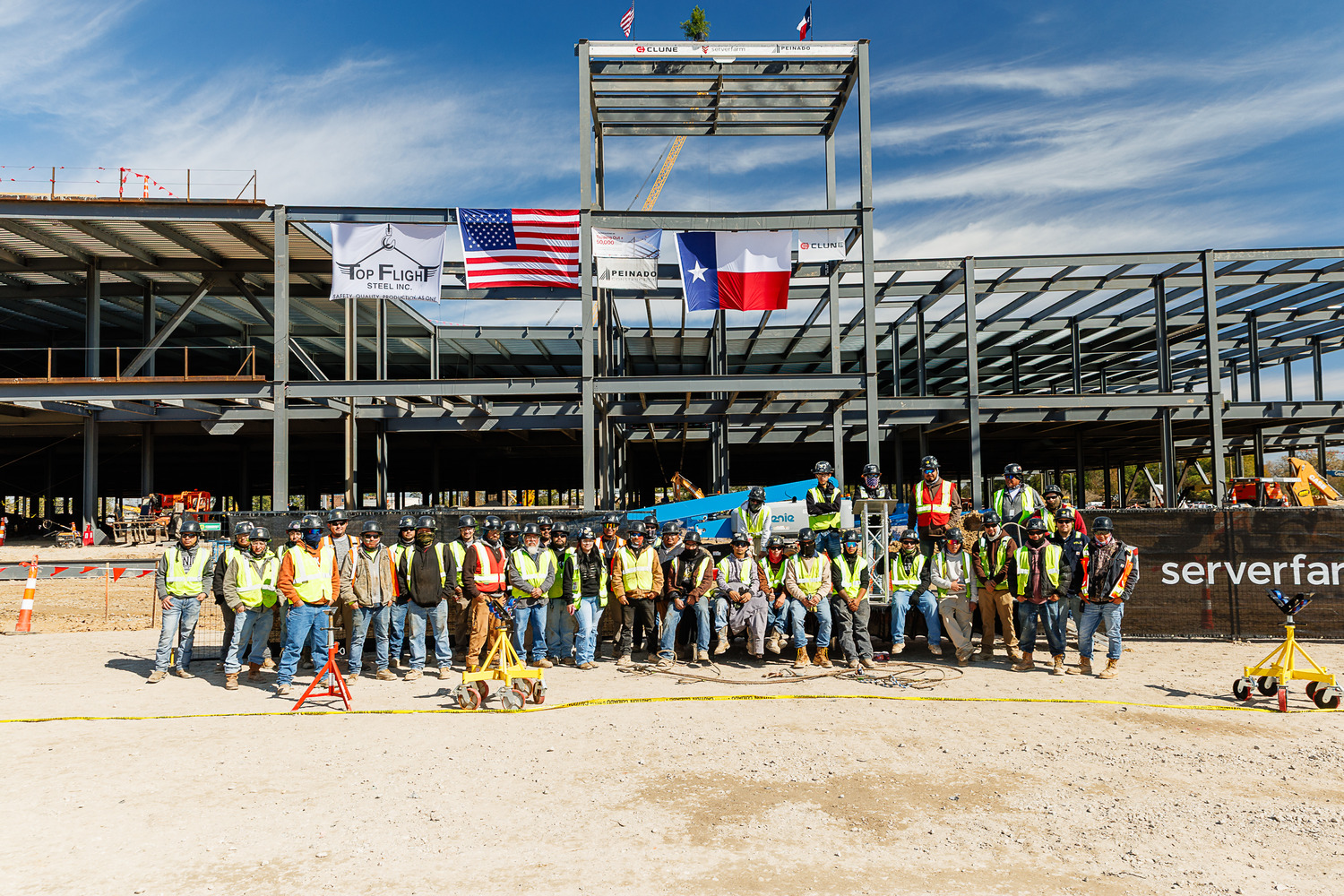

The CTX2 Data Center that’s in progress in Houston, Texas is a two‑story, 430,000 SF mission‑critical facility designed to deliver 60MW of total IT capacity across six 12MW data vaults.
The first floor houses all ServerFarm administrative/operational functions, including the main lobby, security room, customer areas, offices, restrooms, shipping and receiving, utility entrances, and MMR/MDF rooms. Included on the first floor are two data halls. The second floor consists of three data halls. These data halls are supported by adjacent mechanical galleries that serve each vault’s critical cooling and electrical systems.
The facility’s roof hosts an elevated equipment platform with perimeter screening, supporting seventy air‑cooled chillers that feed the data vault mechanical systems. Additional mechanical support is provided by twenty‑eight fan coil wall units distributed across two galleries.
The critical power system is organized into multiple identical load groups that are fully stick‑built on site. Each load group includes a 3,000 kVA transformer, a 3,300 kW 480V generator, 4,000A 480V switchgear, dual 1,000 kW UPS modules, and all associated distribution components.
